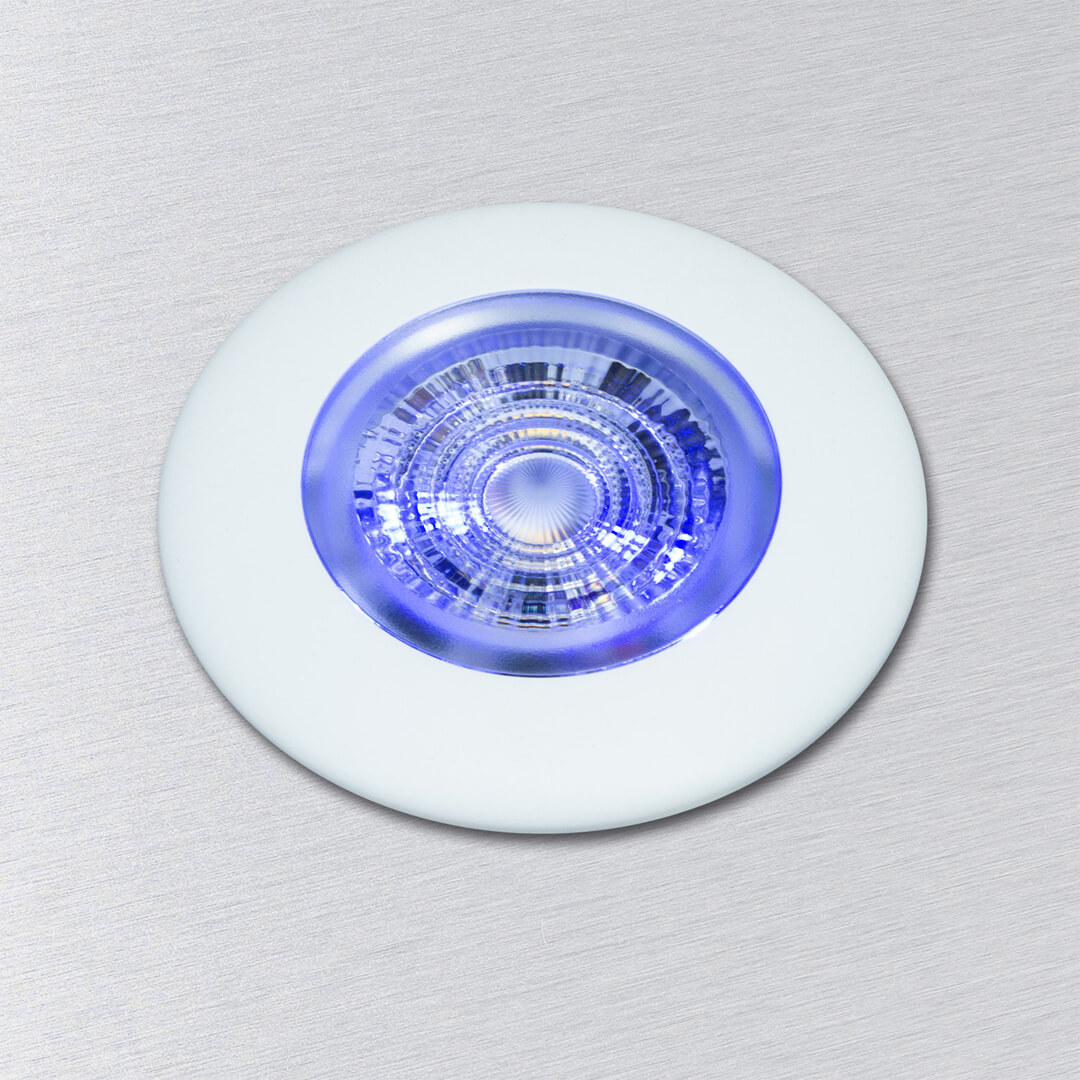

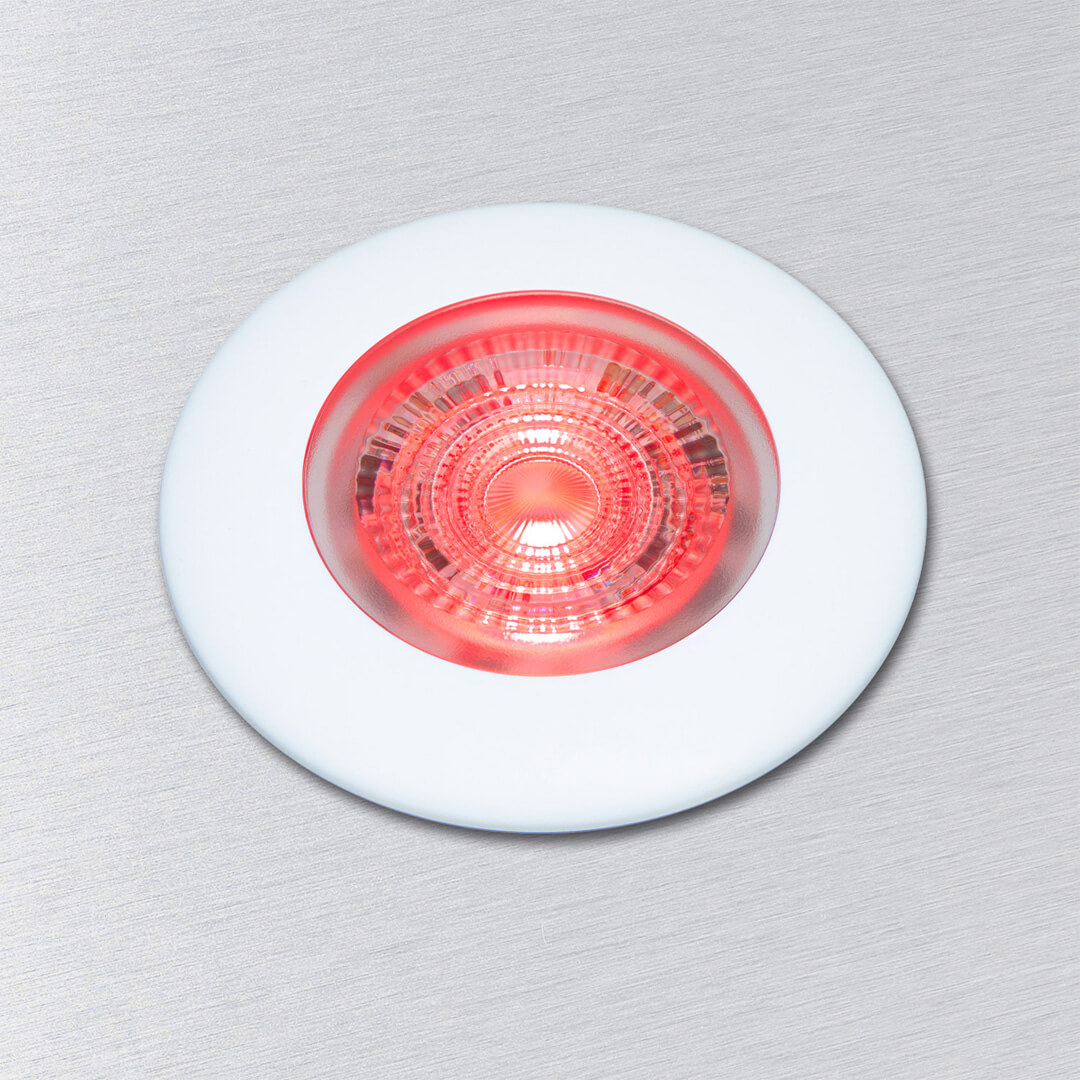

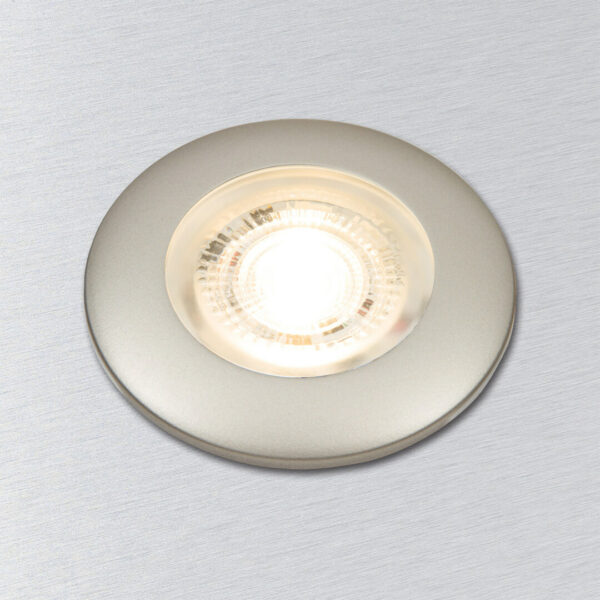

F-19 Mini LED

Category: ,

F-19 Mini stands for a lot of power in a small space. Their place of use are ceilings with a low space requirement. Equipped with the same precision optics, it also ensures a very harmonious illumination.

Highlights

– 20 mm installation depth, ideal for low ceilings with little installation depth;
– Homogeneous illumination thanks to patented optics
– Dimmable via external PWM signal
– Economical 3 watts

Clear
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
  • leistung-watt-3
  • spannung-10-30-volt-dc
  • lumen-200
  • schutzklasse-ip50
SKU: F-19 Mini Category: ,
Exclusively for commercial customers

Please use the watchlist to send us your inquiry. Please indicate whether you are a private customer or a commercial customer. Private customers can also contact our dealers directly.

Variations
SKU Light colour Night light Dimmable
8212 blue no no Add to watchlist
8201 warm white no no Add to watchlist
8220 warm white no Powerdim Add to watchlist
8222 warm white no Signaldim Add to watchlist
8252 warm white blue no Add to watchlist
8250 warm white red no Add to watchlist
8251 warm white green no Add to watchlist
8202 cool white no no Add to watchlist
8224 cool white no Powerdim Add to watchlist
8226 cool white no Signaldim Add to watchlist
8255 cool white blue no Add to watchlist
8253 cool white red no Add to watchlist
8254 cool white green no Add to watchlist
8210 red no no Add to watchlist
Additional information
  • Light colour

    blue, blue, cool white, cool white, red, red, warm white, warm white

  • Night light

    blue, blue, green, green, no, no, red, red

  • Shape

    round, round

  • Design

    Recessed lighting fixture, Recessed lighting fixture

  • Power (watts)

    3, 3

  • Lumen

    200, 200

  • Switch

    no, no

  • Protection class

    IP50, IP50

  • CRI

    >80, >80

  • Lifetime

    L70 / 50.000 Std., L70 / 50.000 Std.

  • Dimmable

    no, no, Signaldim, Signaldim

  • Material housing

    Polycabonat, Polycabonat

  • CE Certified

    yes, yes

  • Installation method

    Screws, Screws

  • Diameter (mm)

    75, 75

  • Mounting depth (mm)

    12, 12

  • Mounting diameter (mm)

    48, 48

  • Weight (grams)

    60, 60

  • Made in Germany

    Ja, Ja

  • Voltage

    10-30 Volt/DC, 10-30 Volt/DC
