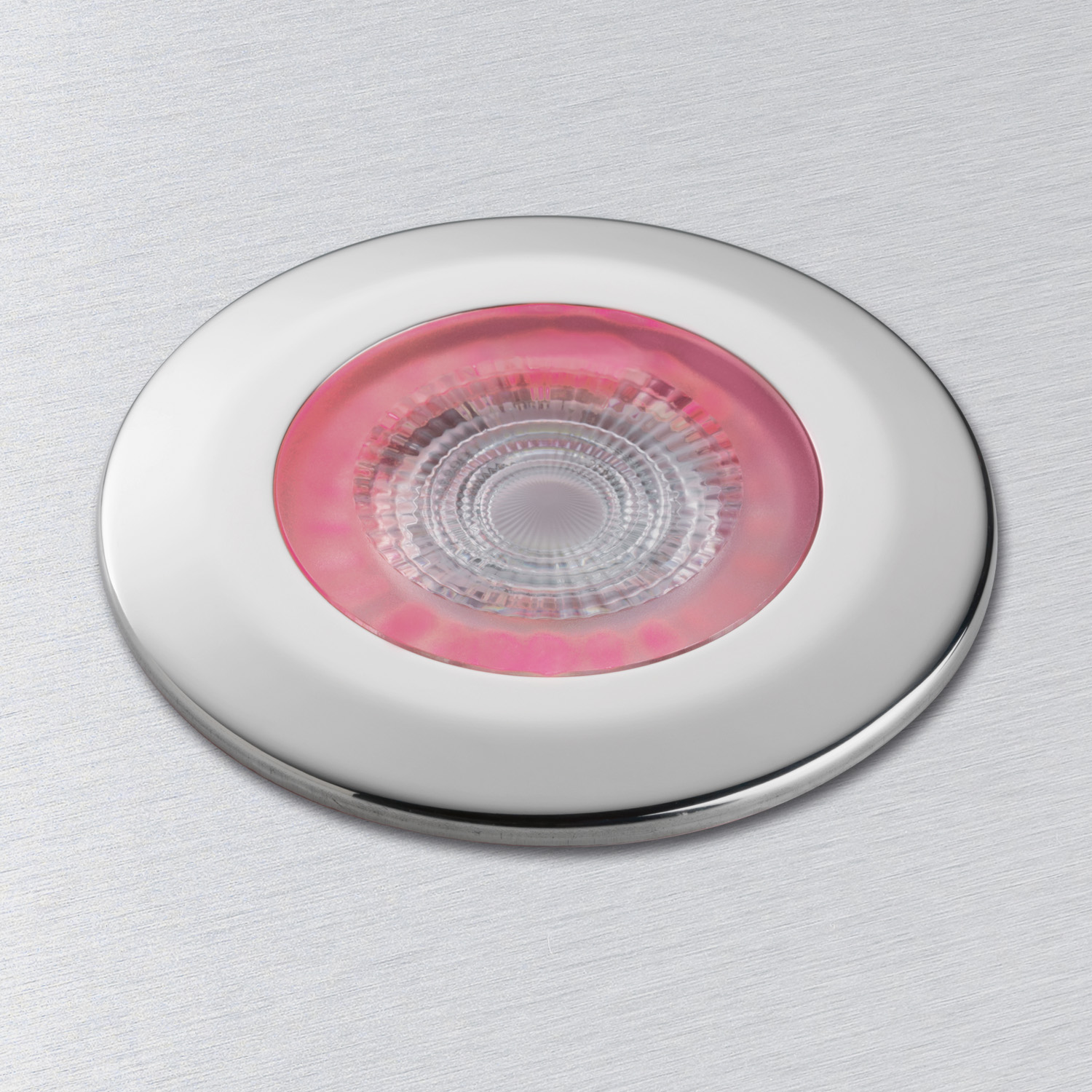

F-19 LED Einbauspot weiß
F-19 LED Einbauspot Chrom Nachtlicht rot
F-19 LED Einbauspot Chrom Nachtlicht grün
F-19 LED Einbauspot Chrom mit Nachtlicht blau

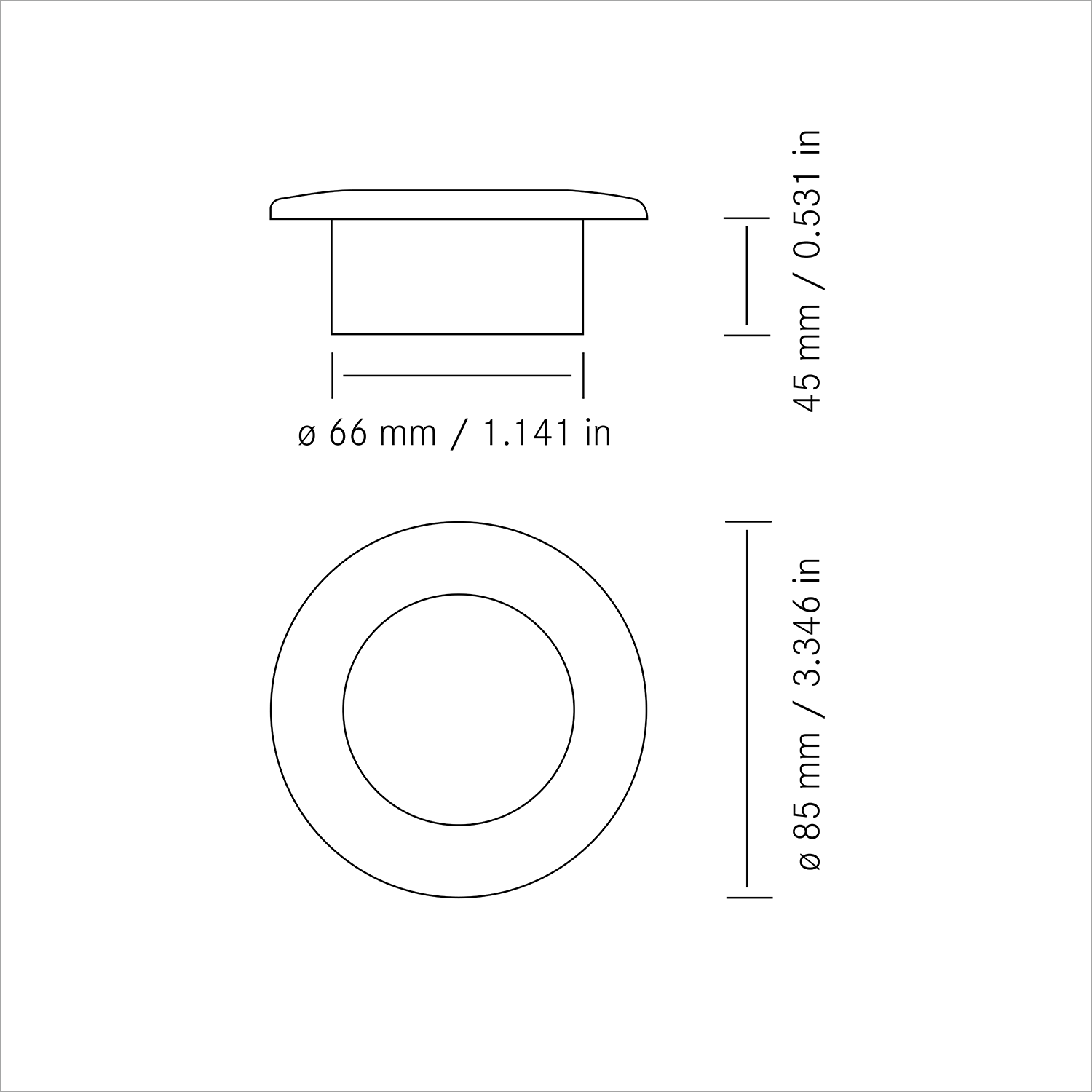

F-19 Zeichnung
F-19 Lichtverteilungskurve

F-19 LED

Category:

Discover the F-19 LED Spot – the perfect combination of power and versatility! This innovative spotlight offers an impressive light output of 400 lumens with a power consumption of 6 watts. Thanks to the Multivoltage function, it is suitable for a variety of vehicles, such as rescue vehicles, fire trucks, motorhomes, and buses, whether you have a 12-volt or 24-volt electrical system.

Another advantage is the ability to adjust the brightness according to your needs, as the spot is continuously dimmable via an external PWM signal. Whether you desire subtle lighting or full brightness – the F-19 LED Spot meets your requirements.

And that’s not all: For the F-19 LED Spot, we offer a wide range of different decorative rings. This way, you can customize the spot to your taste and seamlessly integrate it into your vehicle. Whether you prefer a discreet gray, an elegant black, or a timeless white – please order the decorative rings separately.

Experience the combination of power, flexibility, and style with the F-19 LED Spot. Discover its versatile applications as a lighting solution for vehicles of all kinds, whether in the commercial or private sector. Rely on quality and reliability – choose the F-19 LED Spot!

Highlights

500 lumens of light output
Homogeneous illumination thanks to patented optics
Splash-proof according to IP50
Dimmable with external PWM signal

Clear
SKU: F-19 Category:
Exclusively for commercial customers

Please use the watchlist to send us your inquiry. Please indicate whether you are a private customer or a commercial customer. Private customers can also contact our dealers directly.

Variations
SKU Light colour Dimmable Night light
6824 cool white Signaldim green Add to watchlist
6815 warm white no no Add to watchlist
6820 cool white no no Add to watchlist
6817 warm white Signaldim red Add to watchlist
6822 cool white Signaldim red Add to watchlist
6818 warm white Signaldim blue Add to watchlist
6823 cool white Signaldim blue Add to watchlist
6819 warm white Signaldim green Add to watchlist
6816 warm white Signaldim no Add to watchlist
6821 cool white Signaldim no Add to watchlist
Additional information
  • Light colour

    cool white, warm white

  • Dimmable

    no, Signaldim

  • Night light

    blue, green, no, red

  • Shape

    round

  • Design

    Recessed lighting fixture

  • Power (watts)

    6

  • Lumen

    500

  • Switch

    no

  • Protection class

    IP50

  • CRI

    >80

  • Lifetime

    L70 / 50.000 Std.

  • Housing colour

    bitte Dekorring separat bestellen

  • Material housing

    Polycabonat

  • CE Certified

    yes

  • Installation method

    Springs or screws

  • Diameter (mm)

    85

  • Mounting depth (mm)

    45

  • Mounting diameter (mm)

    66

  • Weight (grams)

    190

  • Features

    Dimmbar über Signaldim oder Dimmer R-570

  • Made in Germany

    Ja

  • Voltage

    10-30 Volt/DC

Downloads
F-19 Datasheet
F-19 instruction manual
