F-25S LED

The slanted apron or ambient light stands out with its high luminous efficacy and its waterproofness.

Highlights

+  Apron or surrounding light
+  High luminous efficacy of 1,000 lumens
+  Waterproof to IP67
+  45° beam angle
+  Solid aluminium housing

Clear
  • leistung-watt-17
  • spannung-10-30-volt-dc
  • lumen-1000
  • schutzklasse-ip67
  • gehaeusefarbe-anthrazit
  • gehaeusefarbe-red
  • leistung-watt-17
  • spannung-10-30-volt-dc
  • lumen-1000
  • schutzklasse-ip67
  • leistung-watt-17
  • spannung-10-30-volt-dc
  • lumen-1000
  • schutzklasse-ip67
  • leistung-watt-17
  • spannung-10-30-volt-dc
  • lumen-1000
  • schutzklasse-ip67
  • leistung-watt-17
  • spannung-10-30-volt-dc
  • lumen-1000
  • schutzklasse-ip67
  • leistung-watt-17
  • spannung-10-30-volt-dc
  • lumen-1000
  • schutzklasse-ip67
  • leistung-watt-17
  • spannung-10-30-volt-dc
  • lumen-1000
  • schutzklasse-ip67
Exclusively for commercial customers

Please use the watchlist to send us your inquiry. Please indicate whether you are a private customer or a commercial customer. Private customers can also contact our dealers directly.

Variations
SKU Housing colour Light colour

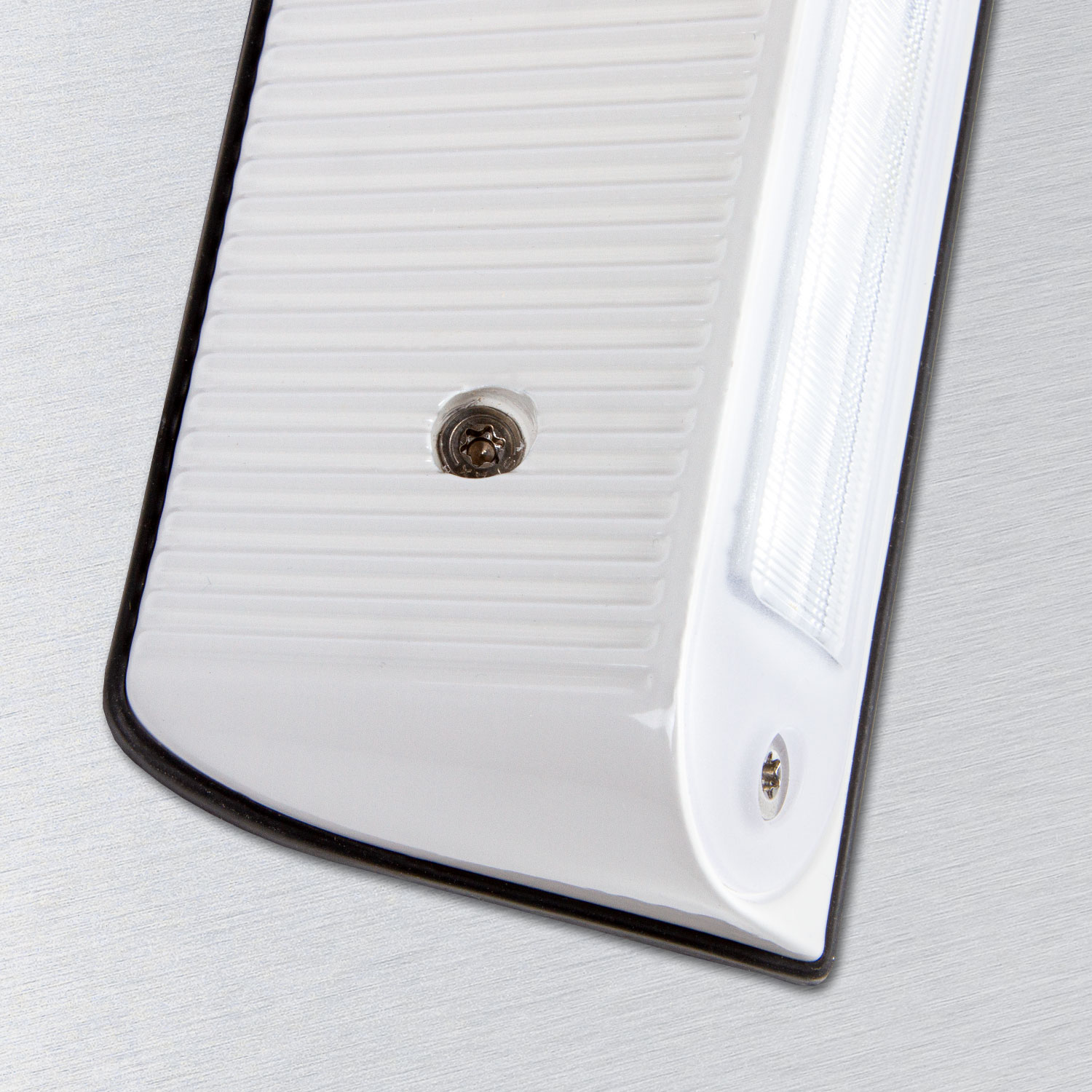

7663 white cool white Add to watchlist
7664 white warm white Add to watchlist

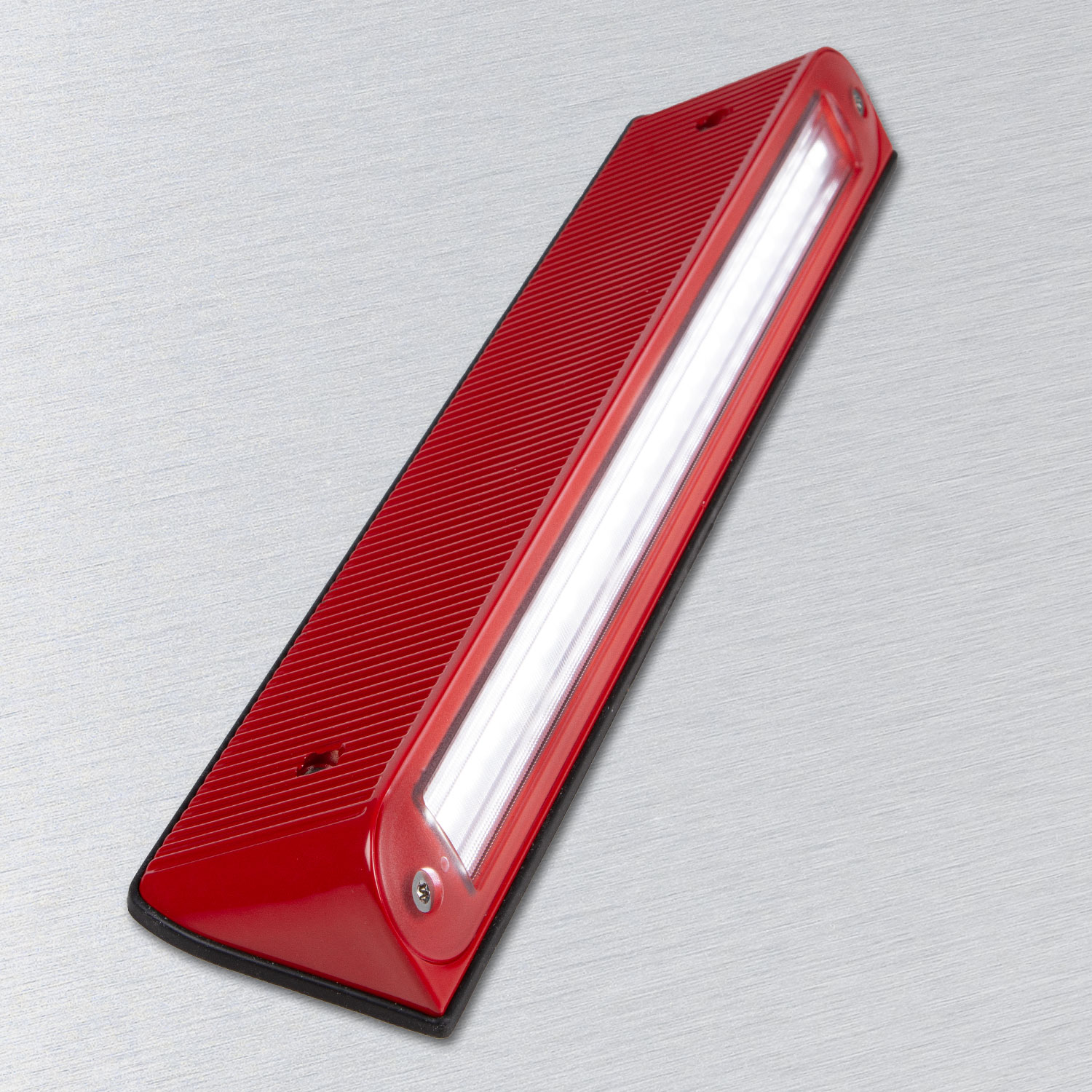

7443 red cool white Add to watchlist
7444 red warm white Add to watchlist

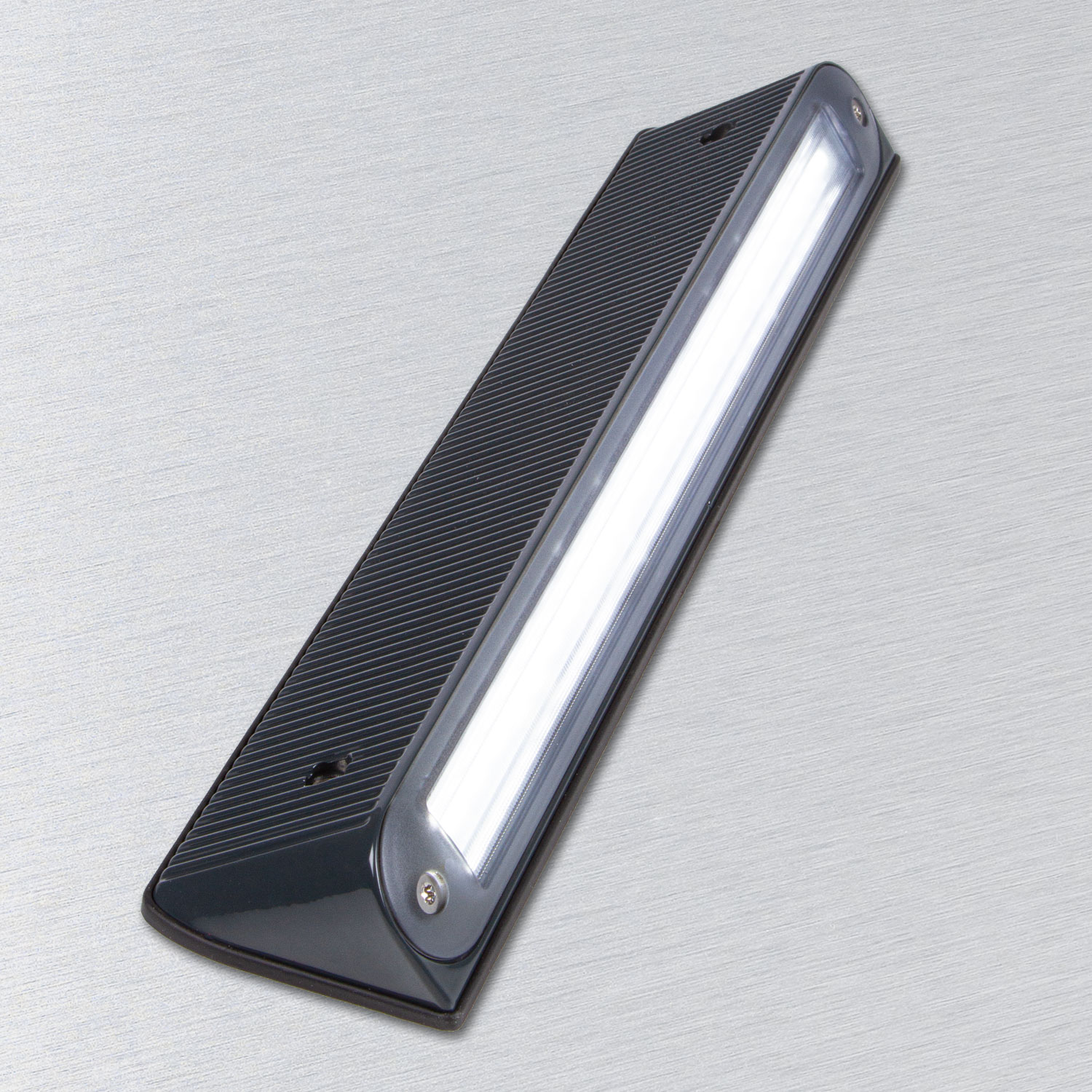

7463 anthrazit cool white Add to watchlist
7464 anthrazit warm white Add to watchlist
Additional information
  • Housing colour

    anthrazit, anthrazit, red, red, white, white

  • Light colour

    cool white, cool white, warm white, warm white

  • Shape

    angular, angular

  • Design

    Surface-mounted lighting fixture, Surface-mounted lighting fixture

  • Power (watts)

    17, 17

  • Lumen

    1000, 1000

  • Beam angle in °

    wide, wide

  • Switch

    no, no

  • Protection class

    IP67, IP67

  • CRI

    >80, >80

  • Lifetime

    L70 / 50.000 Std., L70 / 50.000 Std.

  • Dimmable

    yes via external PWM signal, yes via external PWM signal

  • Night light

    no, no

  • Material housing

    Aluminium, Aluminium

  • CE Certified

    yes, yes

  • Installation method

    Screws, Screws

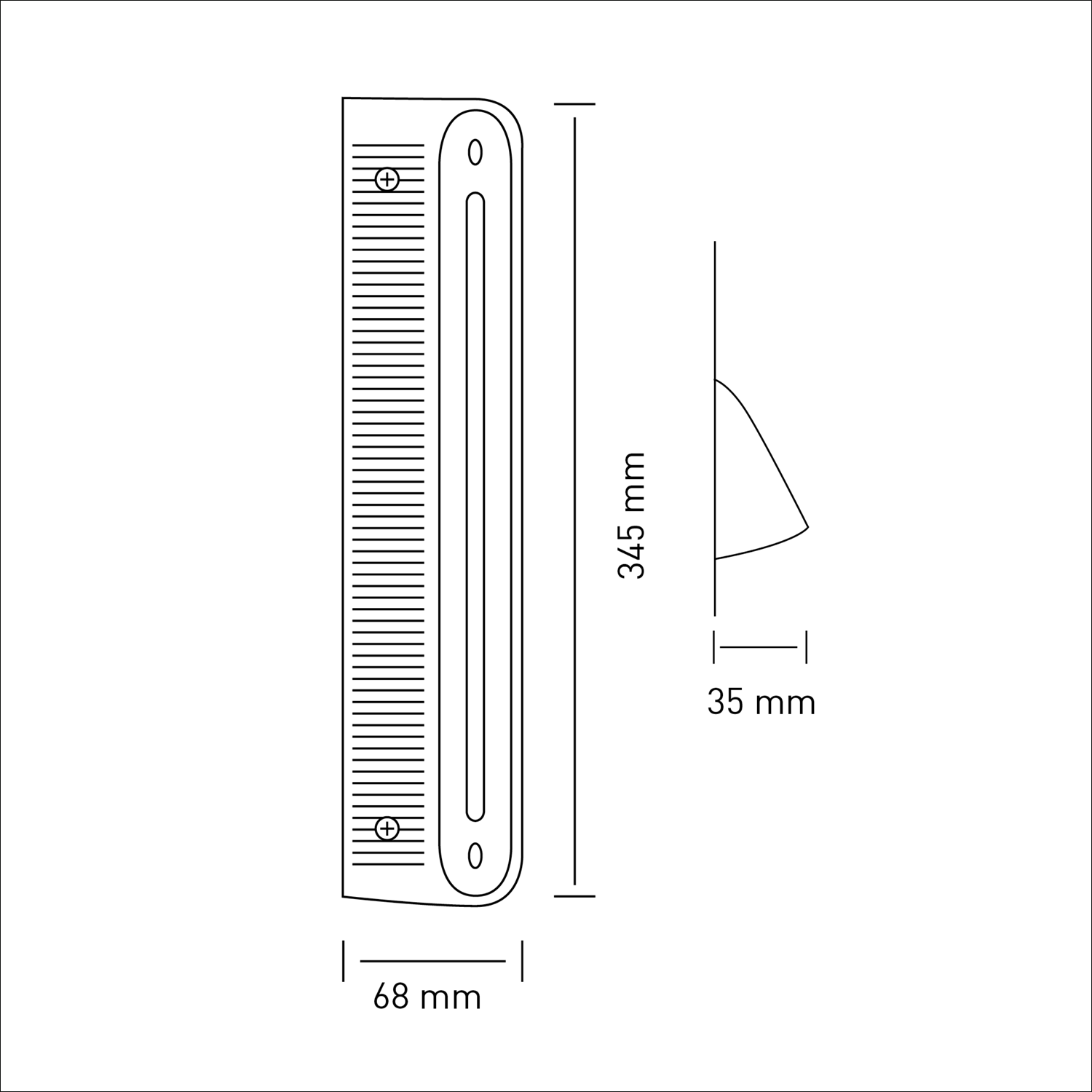

  • Length (mm)

    345, 345

  • Width (mm)

    68, 68

  • Height (mm)

    35, 35

  • Weight (grams)

    675, 675

  • Features

    Dimmable F-25 S work via third wire to dimmer R-570, Dimmable F-25 S work via third wire to dimmer R-570

  • Made in Germany

    Ja, Ja

  • Voltage

    10-30 Volt/DC, 10-30 Volt/DC
