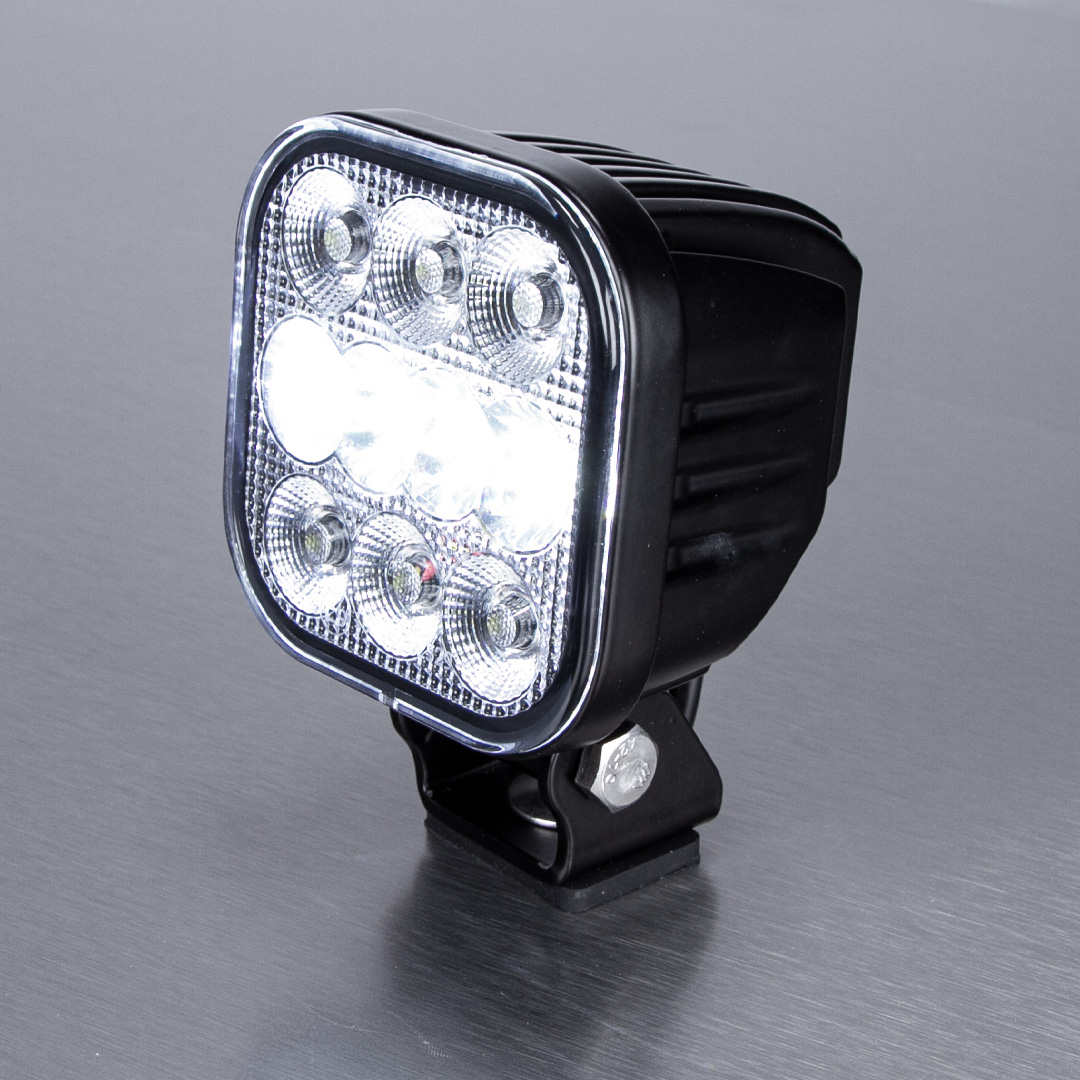

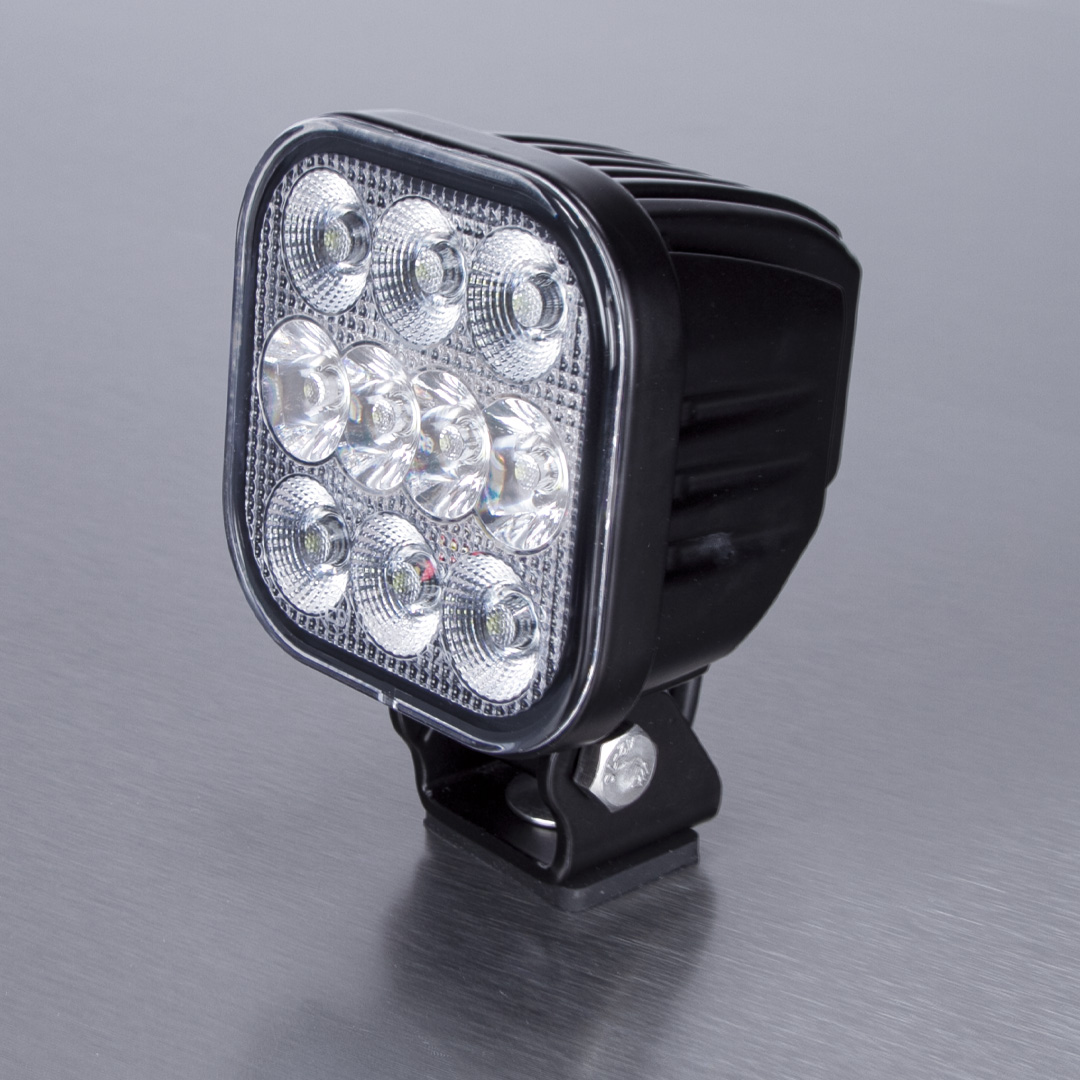

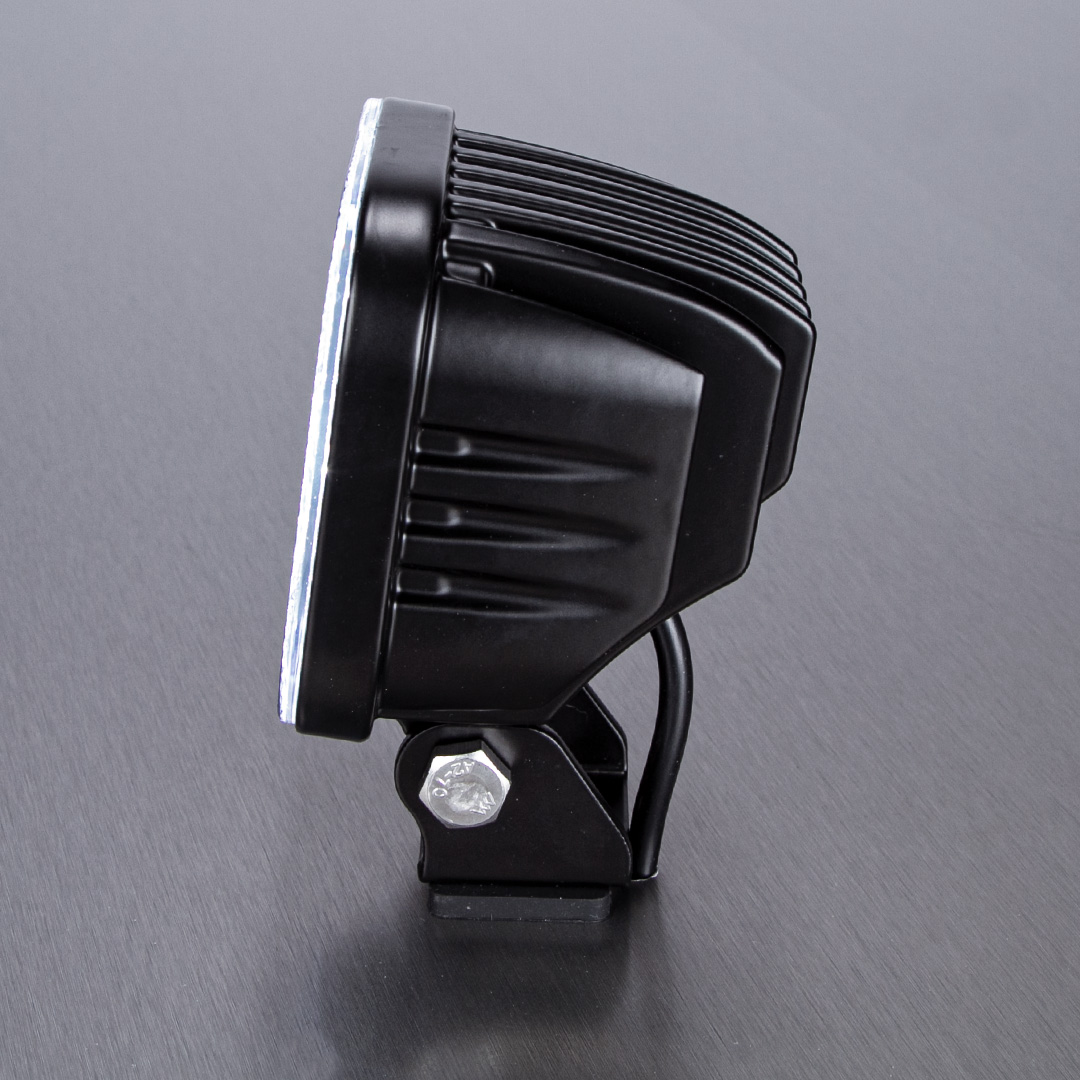

WL-6053
NEW 2022
A compact work light that no vehicle should be without. Thanks to its small dimensions, it can be unobtrusively integrated into the vehicle. It is optionally available with a switch. And thanks to the R10 CISPR certificate, it is approved as a reversing light.
Highlights
+ two step dimming
+ waterproof IP67
+ very high light output
Please use the watchlist to send us your inquiry. Please indicate whether you are a private customer or a commercial customer. Private customers can also contact our dealers directly.
-
Voltage
10-30 Volt/DC, 10-30 Volt/DC
-
Voltage range
11,6 – 16 V, 11,6 – 16 V, 22 – 28 V, 22 – 28 V
-
Power (watts)
17, 17, 34, 34
-
Lumen
ca. 1.500, ca. 1.500, ca. 3.000, ca. 3.000
-
Width (mm)
90, 90
-
Length (mm)
72, 72
-
Weight (grams)
578, 578
-
Switch
no, no
-
Protection class
IP67, IP67
-
Light colour
cool white, cool white
-
CRI
>80, >80
-
Lifetime
L70 / 50.000 Std., L70 / 50.000 Std.
-
Dimmable
yes, two stages, yes, two stages
-
Material housing
Aluminium, Aluminium
-
Housing colour
black, black
-
Connection cable
ca. 250 mm, ca. 250 mm
-
CE Certified
yes, yes
-
Design
Surface-mounted lighting fixture, Surface-mounted lighting fixture
-
temperature range
-40 – +60°C, -40 – +60°C
-
Features
R10 Certificate, R10 Certificate
| LED-Worklight-WL-6053 | Download |
