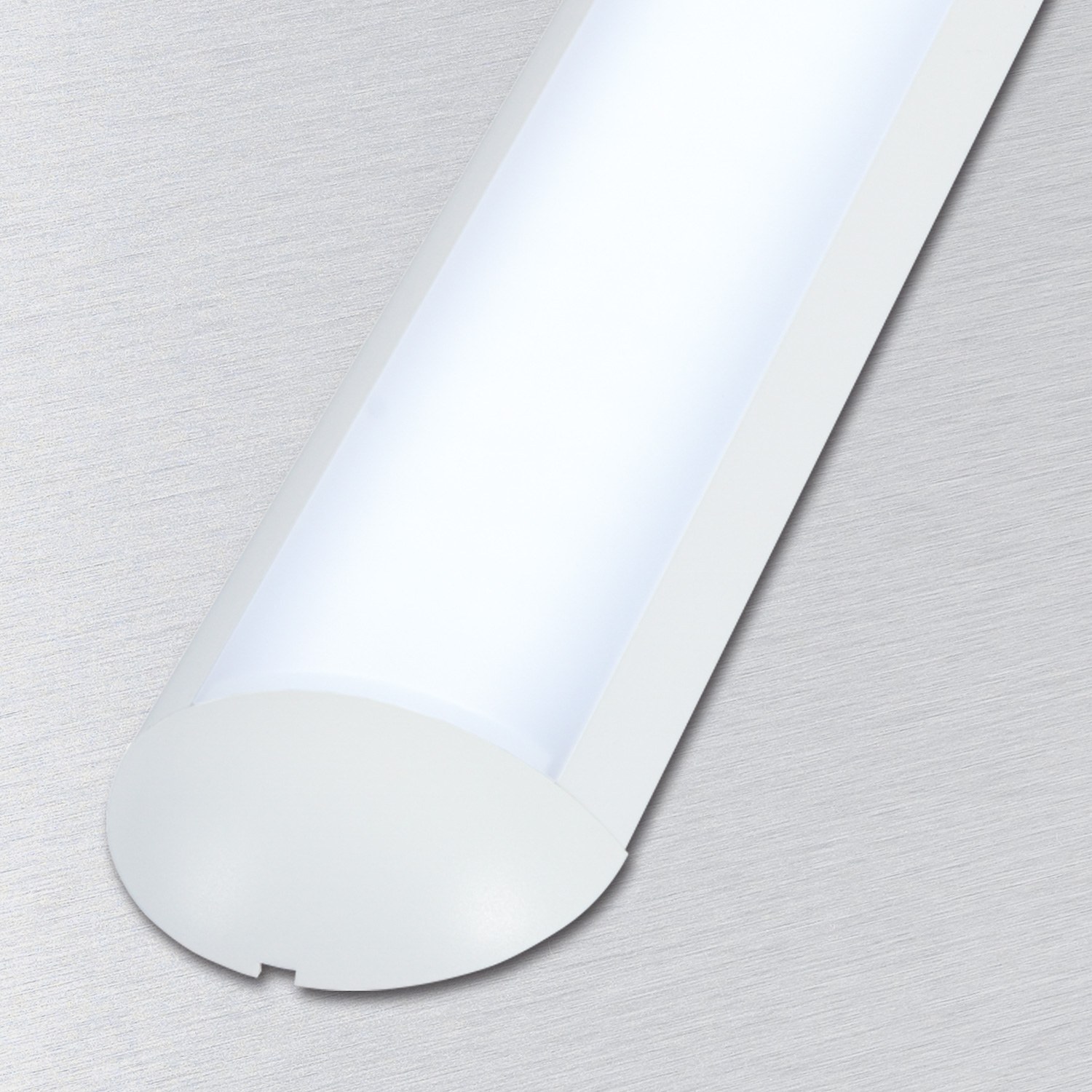

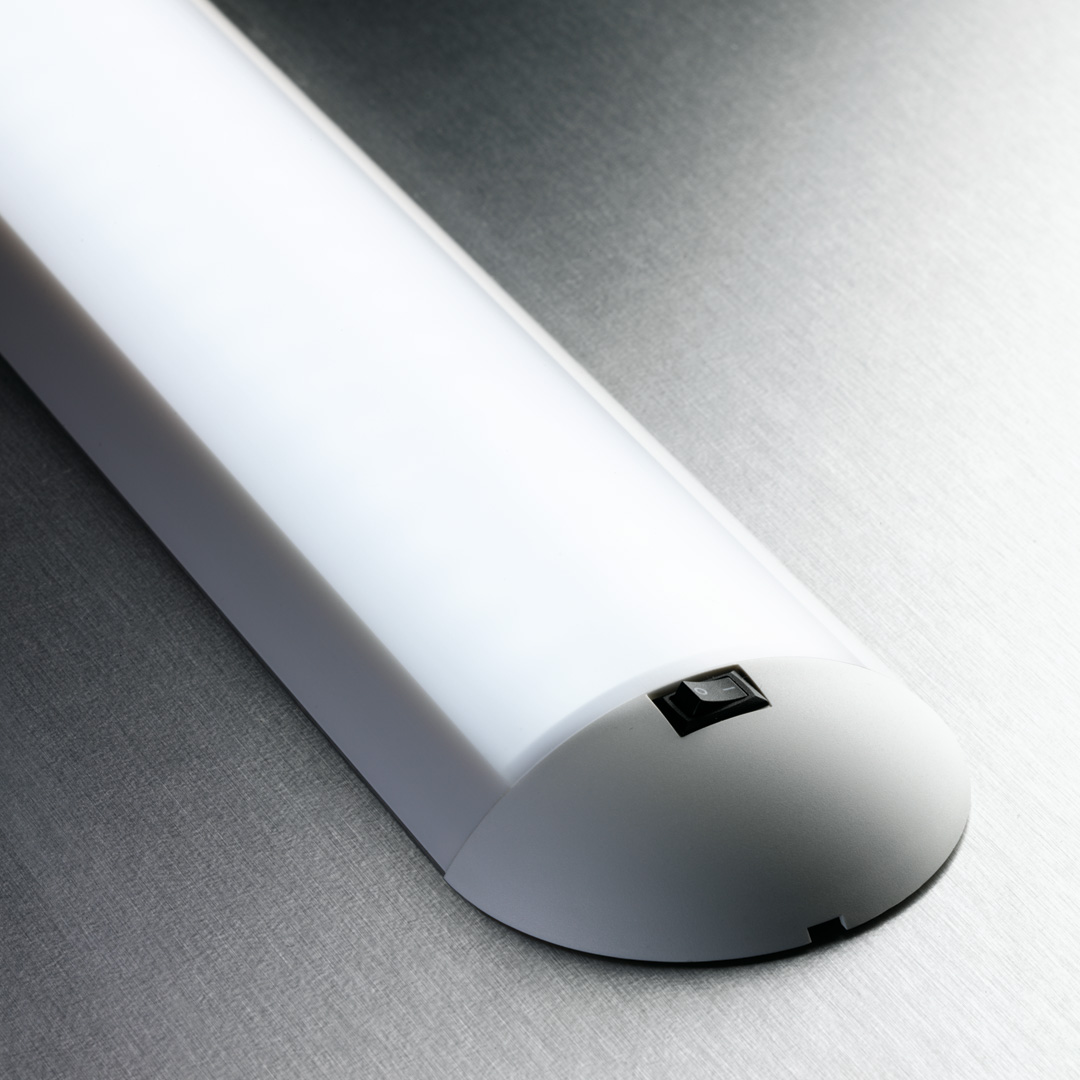

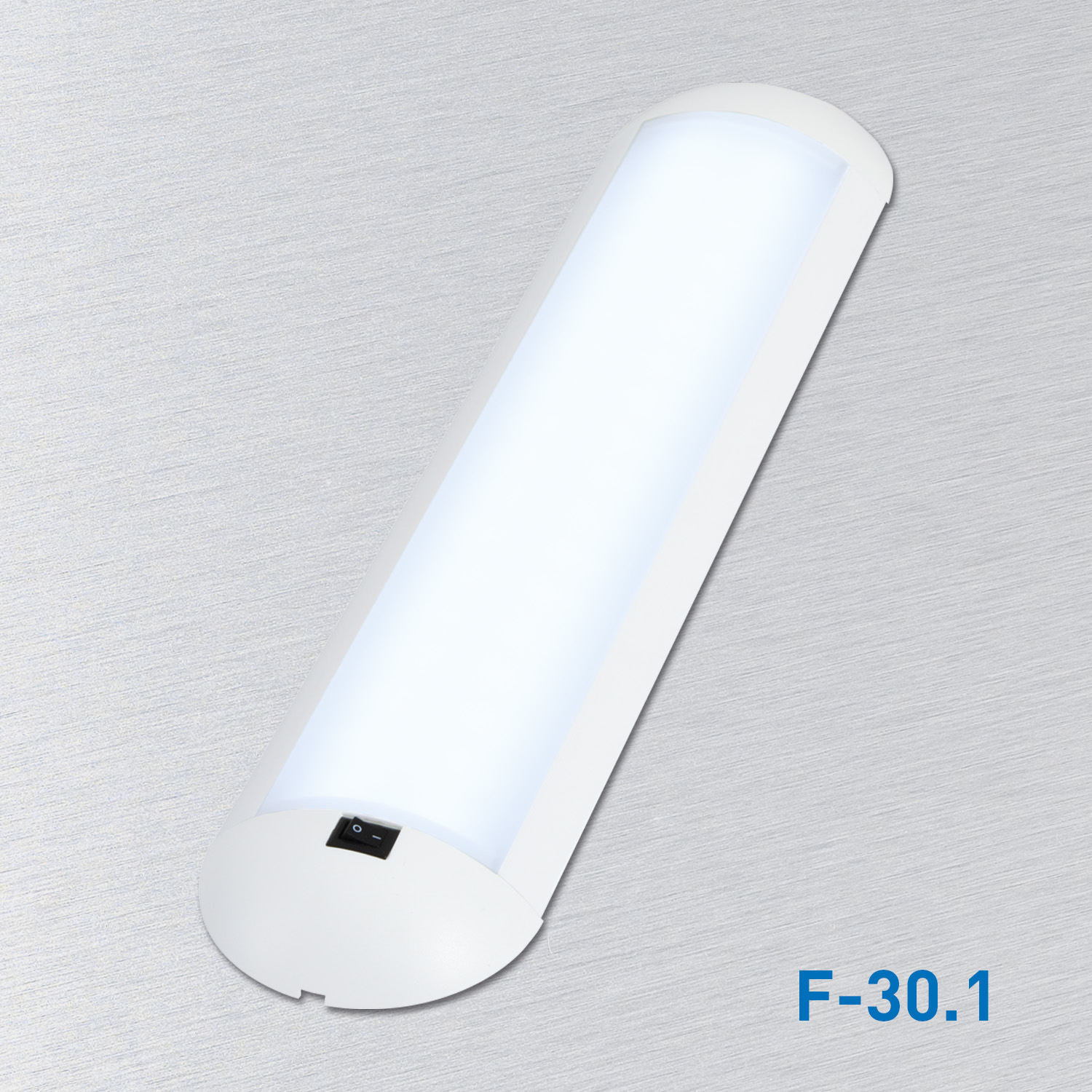

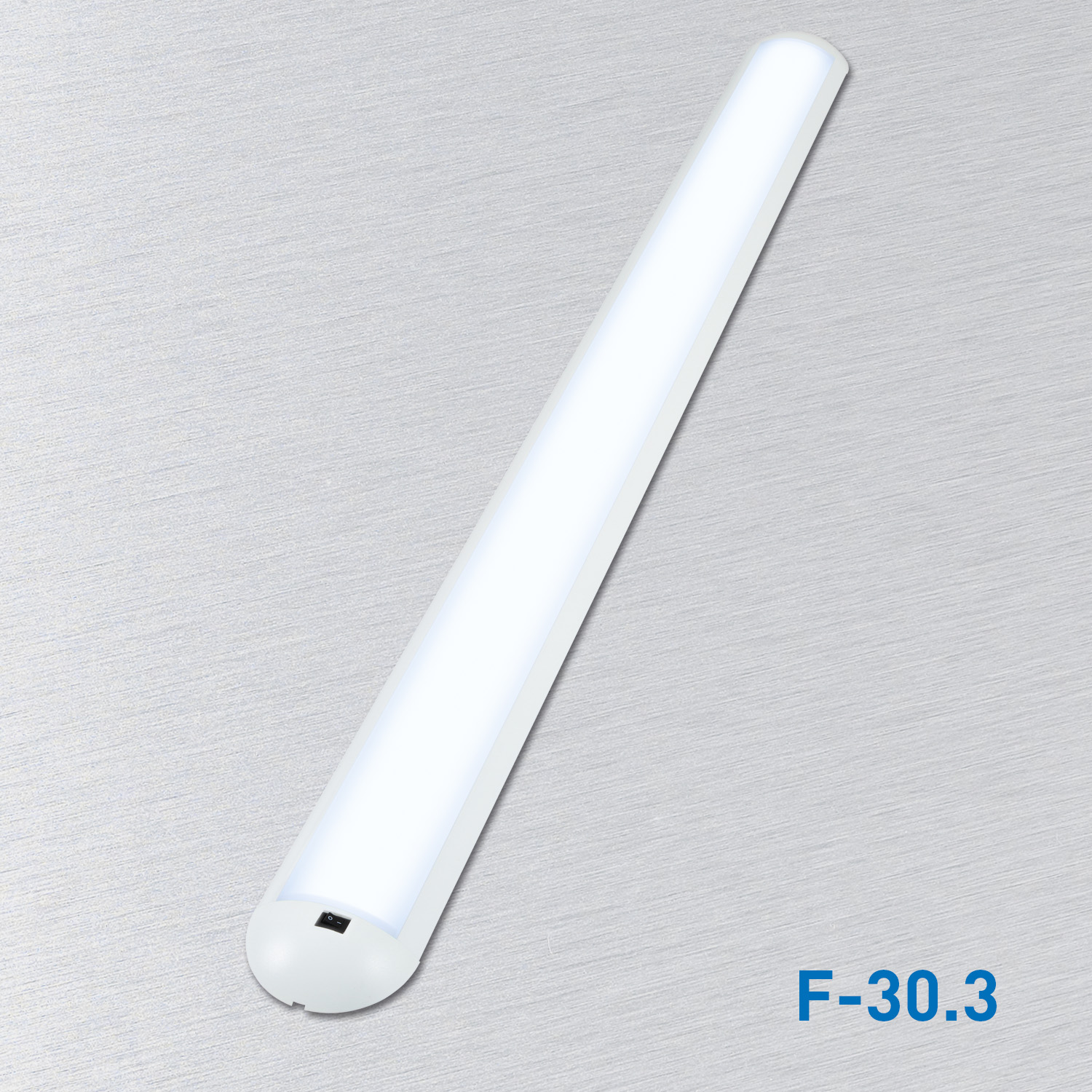

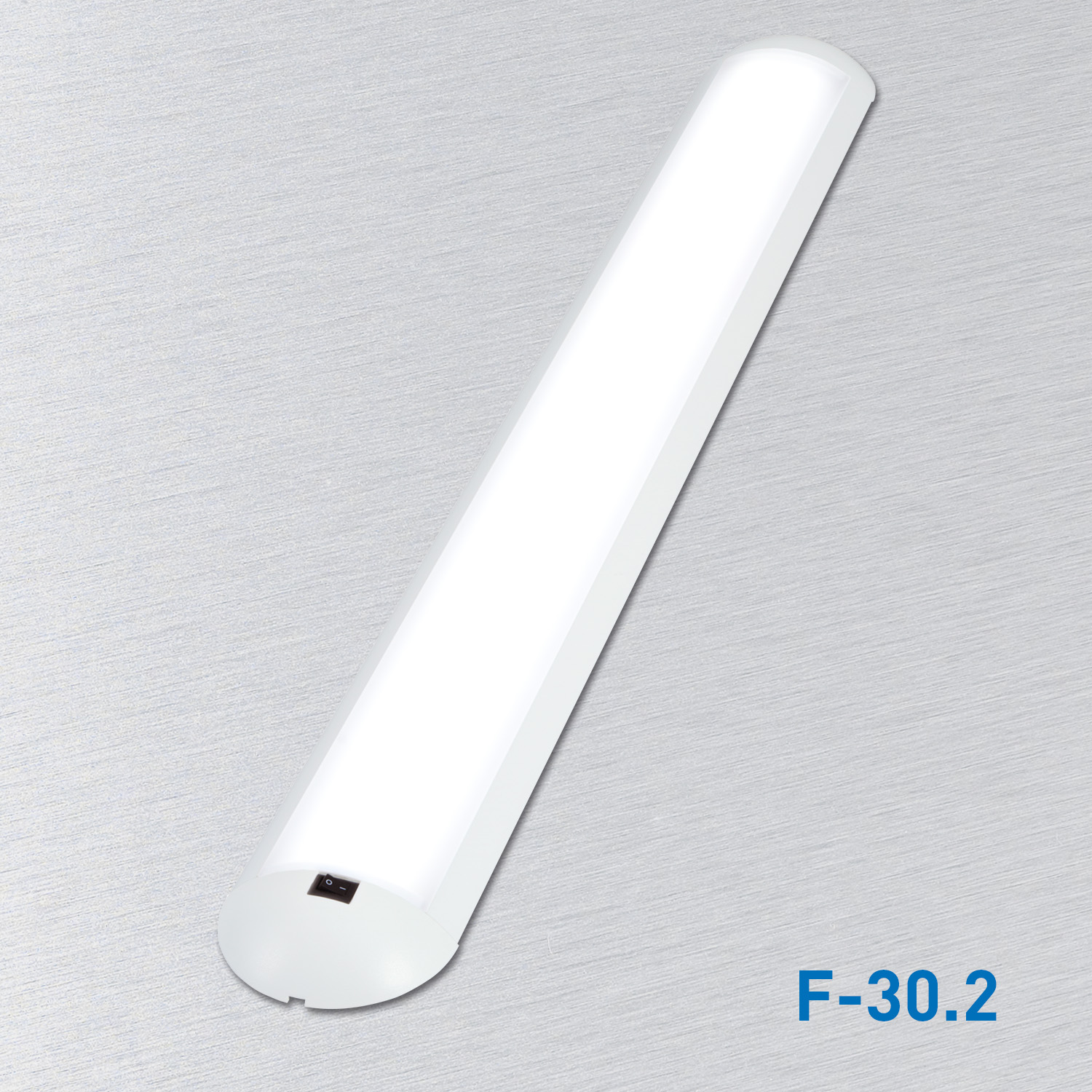

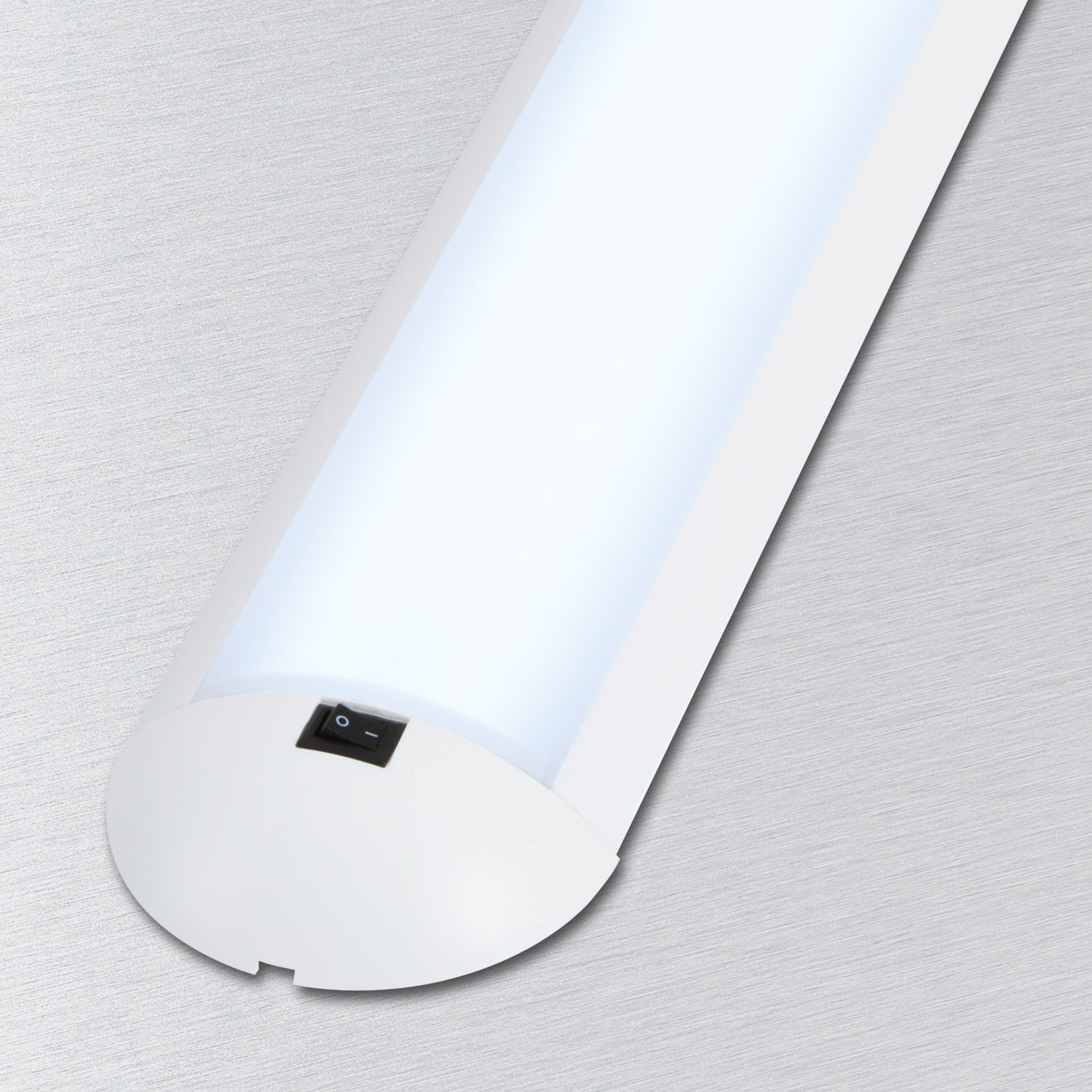

F-30 LED

The F-30 LED Stream is a very flat strip light. It will succeed the classic fluorescent tubes, only with the many advantages of an LED light. Powerful, durable and equipped with RGB LEDs, the F-30 LED Stream is a real all-rounder. Its subtle design does not allow the light to be bothersome or obtrusive.

Highlights

+  12 and 24 volts
+  available in three lengths
+  in the design of a classic ceiling lamp

Clear
  • leistung-watt-16
  • leistung-watt-24
  • leistung-watt-8
  • spannung-24-volt-dc
  • lumen-1300
  • lumen-1900
  • lumen-600
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
  • schutzklasse-ip50
Exclusively for commercial customers

Please use the watchlist to send us your inquiry. Please indicate whether you are a private customer or a commercial customer. Private customers can also contact our dealers directly.

Variations
SKU Length (mm) Light colour Voltage Switch Night light
0300 384 cool white 12 Volt/DC no no Add to watchlist
0302 384 cool white 12 Volt/DC yes no Add to watchlist
0304 384 cool white 24 Volt/DC no no Add to watchlist
0306 384 cool white 24 Volt/DC yes no Add to watchlist
0305 384 warm white 24 Volt/DC no no Add to watchlist
0307 384 warm white 24 Volt/DC yes no Add to watchlist
0308 384 cool white 12 Volt/DC no ja (wählbar RGB) Add to watchlist
0310 384 cool white 24 Volt/DC no ja (wählbar RGB) Add to watchlist
0316 674 cool white 12 Volt/DC no no Add to watchlist
0318 674 cool white 12 Volt/DC yes no Add to watchlist
0322 674 cool white 24 Volt/DC yes no Add to watchlist
0317 674 warm white 12 Volt/DC no no Add to watchlist
0319 674 warm white 12 Volt/DC yes no Add to watchlist
0321 674 warm white 24 Volt/DC no no Add to watchlist
0323 674 warm white 24 Volt/DC yes no Add to watchlist
0324 674 cool white 12 Volt/DC no ja (wählbar RGB) Add to watchlist
0326 674 cool white 24 Volt/DC no ja (wählbar RGB) Add to watchlist
0325 674 warm white 12 Volt/DC no ja (wählbar RGB) Add to watchlist
0327 674 warm white 24 Volt/DC no ja (wählbar RGB) Add to watchlist
0332 964 cool white 12 Volt/DC no no Add to watchlist
0334 964 cool white 12 Volt/DC yes no Add to watchlist
0336 964 cool white 24 Volt/DC no no Add to watchlist
0338 964 cool white 24 Volt/DC yes no Add to watchlist
0333 964 warm white 12 Volt/DC no no Add to watchlist
0335 964 warm white 12 Volt/DC yes no Add to watchlist
0337 964 warm white 24 Volt/DC no no Add to watchlist
0339 964 warm white 24 Volt/DC yes no Add to watchlist
0340 964 cool white 12 Volt/DC no ja (wählbar RGB) Add to watchlist
0342 964 cool white 24 Volt/DC no ja (wählbar RGB) Add to watchlist
0341 964 warm white 12 Volt/DC no ja (wählbar RGB) Add to watchlist
0343 964 warm white 24 Volt/DC no ja (wählbar RGB) Add to watchlist
Additional information
  • Length (mm)

    384, 384, 674, 674, 964, 964

  • Light colour

    cool white, cool white, warm white, warm white

  • Voltage

    12 Volt/DC, 12 Volt/DC, 24 Volt/DC, 24 Volt/DC

  • Power (watts)

    16, 16, 24, 24, 8, 8

  • Lumen

    1300, 1300, 1900, 1900, 600, 600

  • Switch

    yes, no, no, yes

  • Design

    Surface-mounted lighting fixture, Surface-mounted lighting fixture

  • Protection class

    IP50, IP50

  • CRI

    >80, >80

  • Lifetime

    L70 / 50.000 Std., L70 / 50.000 Std.

  • Dimmable

    yes via external PWM signal, yes via external PWM signal

  • Night light

    no, no

  • Housing colour

    white, white

  • Material housing

    Polycarbonate/Anodised aluminum, Polycarbonate/Anodised aluminum

  • Installation method

    Stainless steel screws, Stainless steel screws

  • Width (mm)

    85, 85

  • Height (mm)

    22, 22

  • Made in Germany

    Ja, Ja

  • Weight (grams)

    305, 305, 570, 570, 853, 853

Downloads
LED-Surface Mount-RGB-F-30-Stream
