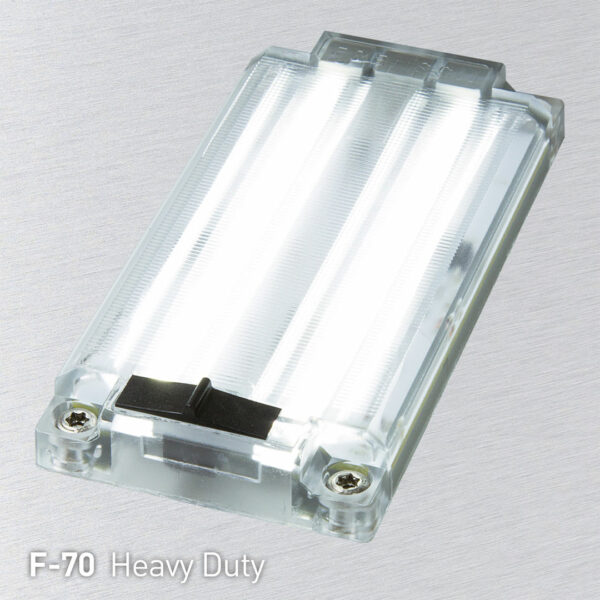

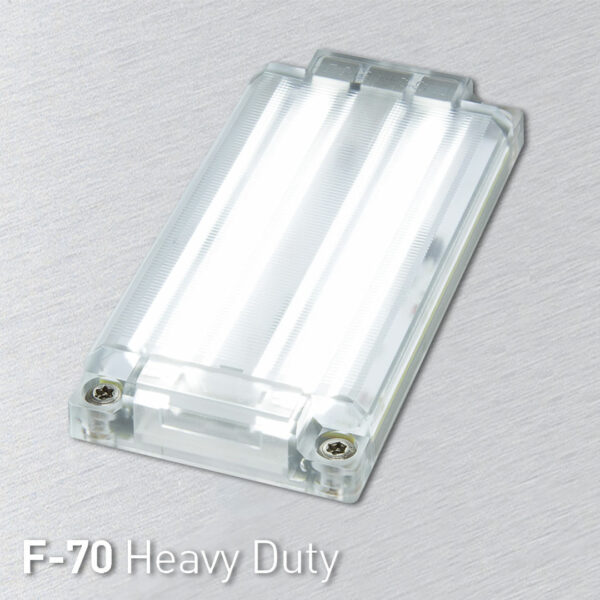

F-70 Heavy Duty

With the F-70, Frensch has developed a sturdy work light for automotive applications. Designed for use as a ceiling light for CEP vehicles, trailers, refrigerated transporters or driver’s cabins. Thanks to its special housing and the newly developed magnetic switch, the heavy-duty version can be used in machine and engine rooms. Wherever there are increased environmental requirements.

Highlights

– 24 Power LEDs
– Extended temperature range (-40 to +100°)
– Fully cast and waterproof according to IP67
– Patented dual-volt circuit (12 + 24 V)

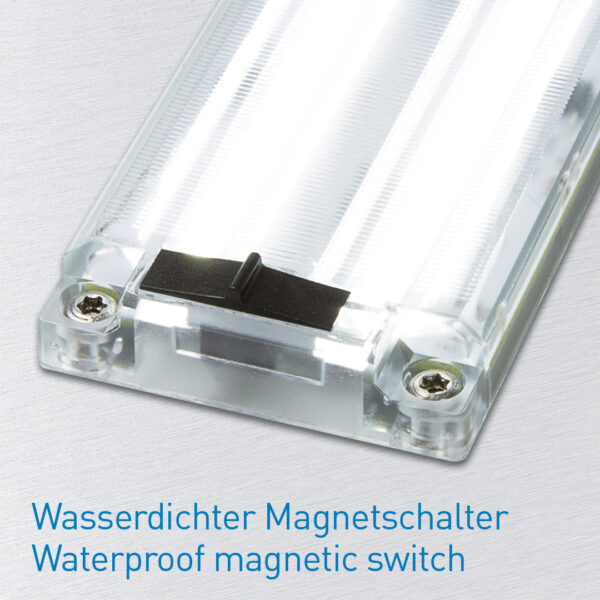

– Available with magnetic switch

Clear
  • leistung-watt-5
  • lumen-400
  • schutzklasse-ip67
  • gehaeusefarbe-klar
  • leistung-watt-5
  • lumen-400
  • schutzklasse-ip67
  • gehaeusefarbe-klar
SKU: F-70 Heavy Duty Category: ,
Exclusively for commercial customers

Please use the watchlist to send us your inquiry. Please indicate whether you are a private customer or a commercial customer. Private customers can also contact our dealers directly.

Variations
SKU Switch Height (mm)
0516 yes, illuminated 17 Add to watchlist
Additional information
  • Weight
    N/A
  • Switch

    yes, illuminated, no, no, yes, illuminated

  • Height (mm)

    15, 15, 17, 17

  • Shape

    angular, angular

  • Design

    Surface-mounted lighting fixture, Surface-mounted lighting fixture

  • Power (watts)

    5, 5

  • Lumen

    400, 400

  • Protection class

    IP67, IP67

  • CRI

    >80, >80

  • Lifetime

    L70 / 50.000 Std., L70 / 50.000 Std.

  • Dimmable

    no, no

  • Night light

    no, no

  • Housing colour

    klar, klar

  • Material housing

    Polycarbonate HT, Polycarbonate HT

  • CE Certified

    yes, yes

  • Installation method

    Screws, Screws

  • Length (mm)

    120, 120

  • Width (mm)

    60, 60

  • Made in Germany

    Ja, Ja

  • Voltage

    12I24, 12I24

  • Light colour

    cool white, cool white

  • Weight (grams)

    220, 220
